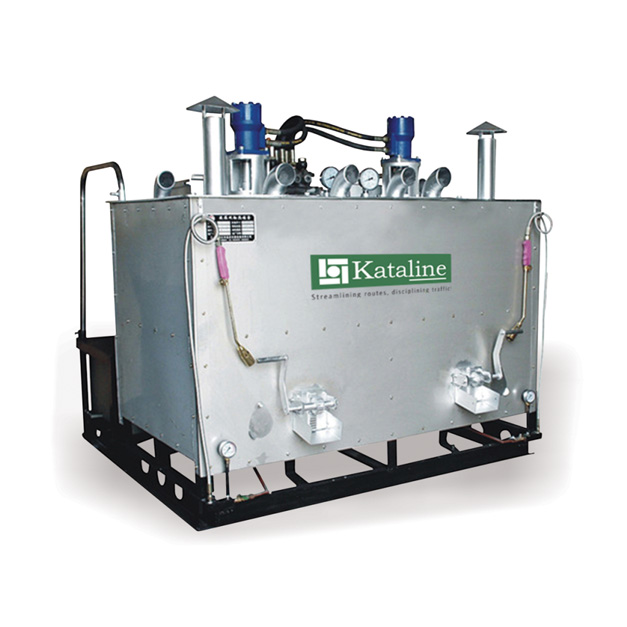

Traffix P1000H/P800H
Double Cylinder Preheater
- Model - TRAFFIX P1000H
- Description - Double Cylinder Preheater
- Engine Power - 13.2 KW (18 HP) Diesel Engine
- Start up mode - Manual/Electric Start
- Hydraulic motor Power - 13 KW
- Transmission - Hydraulic
- Stirring - Hydraulic with protective device
- Heating - LPG (Liquified Petroleum Gas)
- Number of Tanks/Cylinders - 2
- Tank/Cylinder Capacity - 500 Kg X 2 (20 HDPE bags/Tank)
- Cylinder Structure - Suspended
- Insulation - 3 Layers of Circular heat preservation
- Cylinder Bottom Plate Material - High Carbon Alloy Steel
- Cylinder Bottom Plate Thickness - 10mm
- Panel Material - Stainless Steel
- Diesel Tank Capicity - 70 Ltrs
- Heating Temperature - 0°C to 300°C
- Recommended Discharge Temperature - 180°C to 220°C
- Net Weight - 1000 Kgs
- Gross Weight - 1200 Kgs
- Volume - 6.2 m³
- Dimentions - 1700mm (L) X 1650mm (W) X 1600mm(H)
- Warranty - 6 Months
- Packiging - Wodden Box
